Name

Pinboard

 ICP

(In-Chamber Probe)

Aging Pallet

 Feature

 ■  Test for OLED Mobile Panel

 ■  3 types of probe blocks

- Blade : for Rigid Panel

- Film : for Flexible Panel

- MEMS : for Flexible/Rigid Panel

 ■  Repair can be responded

 ■  Inspection of 20 cells or more of the ledger Glass Panel in OLED deposition facility at the same time

 ■  2 types of probe blocks

- Blade type : for Rigid Panel

- MEMS type : for Flexible Panel

 ■  Unit for Aging to stabilize the luminance of OLED small and medium panels

 ■  Line, Dot, Foreign substance, Uniformity, luminance and color coordinate abnormality test.

 ■  FLAT / VIA / HYBRID 3 Type Probe

 Details

 Name

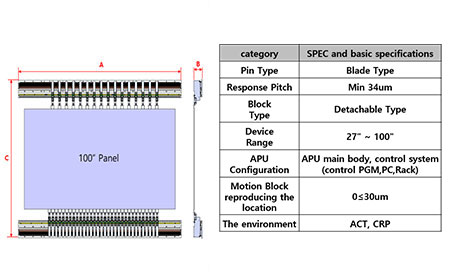

Array Unit

 APU

(Auto Probe Unit)

 Feature

  ■  After TFT deposition, one of the BP processes, a probe unit that performs open/short and leakage current inspections on a circuit through current inspections.

 ■  Equipped with probe block that can respond to at least 30um pitch.

 ■  Unlike existing facilities that required separate facilities for each product size, a groundbreaking facility that can inspect products of various sizes with one facility.

 ■  It can respond to all size panels from medium (~27 inches) to super large (~100 inches or more).

 Details
